Yantai Pengxin Agricultural Machinery Co., Ltd. was established in 1998.Our factory specialize in the production of plant protection agricultural machinery. It covers an area of 30,000 square meters and has more than200 employees. We mainly produce various kinds of power sprayer,boom sprayer,hose reel stand,spray hose ect.
Why Choose Us
Sales Market
Our products have been successfully exported to Central Asia, South Asia, South America and South Korea, and are deeply trusted and praised by customers.
Patent Certificate
We have obtained CE certification and CCC certification to ensure that product quality meets international standards.
Advanced Equipment
We are equipped with advanced robot welding machines, polishing machines, tank making machines, laser cutting machines and forging machines and other high-end equipment to ensure production efficiency and product quality.
Quality Service
We provide a one-year warranty service and are committed to providing customers with high-quality after-sales service and technical support.
We provide customized blasting sprayer manufacturing solutions to meet your project needs. Main customizable options:
● Drive type
● Range
● Spray capacity
● Nozzle type
● Steering mode
● Operation mode
● Capacity
Blasting Sprayer Specification
|
Complete machine |
Dimensions (length, width and height)（mm） |
1800*620*700 |
1930X650X700 |
|
Weight（kg） |
140 |
148 |
|
|
Spray width（m） |
12 |
18 |
|
|
Spray height（m） |
6 |
8 |
|
|
Frequently used pressures in the work（MPa） |
3.5-4.0 |
3.5-4.0 |
|
|
Gear |
Two forward gears, one reverse and one neutral |
Two forward gears, one reverse and one neutral |
|
|
Mode of operation |
Towed type |
Towed type |
|
|
Drive form |
Rear wheel two-wheel drive |
Rear wheel two-wheel drive |
|
|
The distance between axes（mm） |
1320 |
1320 |
|
|
Wheelbase（mm） |
510 |
510 |
|
|
Power |
Calibration power |
4kW |
4.5kW |
|
Engine displacement（ML） |
224 |
224 |
|
|
Calibration speed（r/min） |
3600 |
3600 |
|
|
Start method |
Hand pull recoil |
Hand pull recoil |
|
|
Machine pump |
Type |
Three-bar piston pump |
Three-bar piston pump |
|
Rated power（Kw） |
2-3 |
2-3 |
|
|
Rated flow（L/min） |
30-45 |
30-45 |
|
|
Rated speed（r.p.m） |
800-1200 |
800-1200 |
|
|
Medicine barrel |
Volume（L） |
160L |
200L |
|
Stirring method |
Reflux stirring |
Reflux stirring |
Our Best-Selling Blasting Sprayer
Self Propelled Agricultural Sprayers
190Lself propelled agricultural sprayers can spray high plants,such as pomegranate tree,grapevine and apple trees etc.The 190L self propelled agricultural sprayers can spray 10m vertical distance.It's spray diameter is about 5 meter.

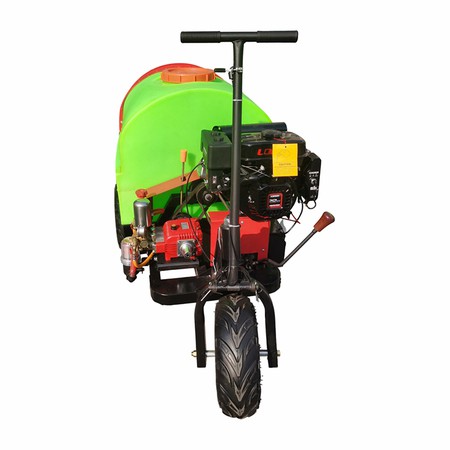

Self Propelled Blasting Sprayer
230L self propelled Blasting Sprayer is in good quality.The 230L self propelled Blasting Sprayeris suitable for spraying and spraying operations in densely planted orchards, greenhouses, and old-fashioned orchards.
Self Propelled Boom Sprayer
The 230L Self-propelled Diesel Engine Boom Sprayer can automatically spray pesticides,reducing the need for manual operation and improving work efficiency.
Motorcycle Engine Cleaner Spray
The 180L Motorcycle Gasoline Engine Mist Sprayer is mainly used for spraying agricultural chemicals to control pests in orchards,vegetable gardens,urban trees,forests and so on.
Our Company Has More Products to Offer, Please Browse the Product Categories on the Website, If You Have Any Needs, Please Contact Us.
Blasting Sprayer Main Parts
Engine
The power must be compatible with the sprayer size and terrain topography. Choose engines with low fuel consumption to reduce operational costs.
Transmission
Transmits the engine power to the wheels, allowing the sprayer to move. Analyse the transmission type, number of gear shifts and the maximum speed.
Chassis
Consider the type of chassis and suspension, as the ground clearance and load capacity for good machine stability.
Spray booms
The boom size influences the operational yield per hectare of the machine. It also determines the paths the machine leaves in the crop field.
Precautions for Using Blasting Sprayer
Blasting sprayers are strictly prohibited from using inferior gasoline, and the fuel tank switch must be turned off during transportation. For long-term storage, the carburetor and the gasoline in the fuel tank should be drained. The blasting sprayer cannot be used to clear debris or repair the machine without shutting down.
Before starting the engine of the blasting sprayer, you must ensure that the gear lever is in the neutral position. Moreover, the paper air filter element must be cleaned of dust frequently. This maintenance is an important guarantee for the longevity of the engine.
All idling parts of the blasting sprayer should be lubricated in time, especially the bearings should be checked frequently to prevent loss of oil due to lack of oil. When adding gasoline, it must be stopped and completely cooled. It is strictly forbidden to smoke and leave the fire source. The blasting sprayer must use clean water when adding medicine. When the medicine is mixed, the top cover of the medicine bucket must be filled with water to prevent the spray head from being blocked and affecting the work efficiency.
